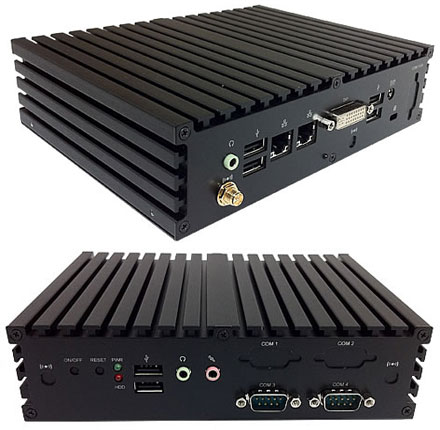

Jetway JBC375F3A-2930-B (Intel BayTrail)

Jetway JBC375F3A-2930-B (Intel BayTrail)

  • INTEL® Bay Trial N2930 SoC Processor (Quad Core, 1.86G)
  • Support Dual Gigabit LAN and up to 4 COM ports
  • Support up to 2.5" SATA HDD and mSATA card (shared w/ Mini PCI-E)
  • Support DVI-I Output
  • Total fanless solution in size: 185*142*48mm
  • Support +9V~+24V DC-in


Share

419.00 EUR
incl. 19% VAT, plus shipping
In stock on 24.10.2025
Add to cart
RAM :

SSD (mSATA):

SSD (2.5"):

Build/Install:
Model Name JBC375F3A-2930-B JBC375F3AW-2930-B
Part Number HBJC375F3A-2930-B HBJC375F3AW-2930-B
Motherboard Specification
CPU Fanless Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Buyrst, Quad-Core, 7.5W TDP/4.5W SDP
Memory 1 * 204-pin DDR3L-1333 SO-DIMM up to 4GB
VGA Intel HD Graphics, 313MHz - 854MHz
LAN 2 * Realtek RTL8111G PCI-E Gigabit LAN
Audio Realtek ALC662 HD Audio
Storage / Drive Bay 1 * 2.5" SATA2 3Gb/s drive bay for HDD or SSD
1 * Shared mSATA/mini-PCI Express Combo slot (Full-size)
Wireless / Mini-PCIE Slot 1 * Mini-PCI Express slot (Half-size) Wireless 802.11 b/g/n
USB Embedded 1 * USB 3.0 and 5 * USB 2.0
Form Factor 3.5" SBC (148mm x 102mm)
Chassis Specification
Product size 180 (W) * 142 (D) * 48 (H) mm
Color Black
HDD 1 * 2.5" Hard Disk Drive Bay (Only support SATA 2.5" HDD)
Front I/O Port 1 * Power Button
1 * Reset Button
2 * USB 2.0 ports
1 * Line Out Jack
1 * Microphone Jack
4 * RS232 Serial Ports (2 * installed & 2 * cables included in accessory box)
2 * WIFI Antenna holes
Rear I/O Port 1 * USB 3.0 ports
3 * USB 2.0 ports
2 * RJ-45 ports
1 * DVI-I port
1 * SMA Connector for WiFi Antenna
1 * Line Out jack
1 * Kensington Lock Hole
1 * +9V ~ +24V DC-in jack
Other Internal Headers These connectors may not be fully usable with chassis closed, but the information is provided for customer alternative uses.
1 * USB Headers for up to 2 * USB 2.0 ports
1 * 24-bit dual channel LVDS connector/inverter (CHRONTEL CH7511B chipset up to 1920 x 1200)
1 * Serial Port Header (RS232/422/485)
1 * 8-bit GPIO header
1 * AT/ATX Mode jumper
Environment Operating Temperature : 0 ~ 40°C
Storage Temperature : -20 ~ 85°C
Standard Accessory - 60W AC-DC Adapter x1
- Power Cord x1
- Wall Mount Kit
- DVI-to-VGA adapter x1
- DIN RAIL x2
- CD Disk x1
- Manual x1
- WIFI antenna (with HBJC375F3AW-2930-B model)
Functional Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
Packing Color Box Dimension: 250(W) x 118 (D) x 295 (H) mm
Gross Weight：2.2KG
Net Weight：1.9KG
Certificate CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
