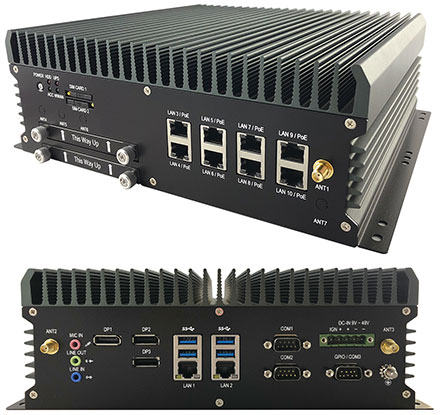

The FleetPC-9B Car-PC series offers high performance and maximum connectivity and optional integrated NVIDIA GPU (FleetPC-9-B-GTX1050Ti / FleetPC-9-B-GTX1060). The 10x LAN ports (optional 8x with POE) and dual hot-swappable 2.5" drive bays (RAID 0/1/5 support) and internal mSATA/M.2 module connector, the system is for example perfect for digital IP video recording applications (police, etc.) and for intensive KI/AI-applications.
3x Mini-PCIe slots allow maximum expandability options including LTE, UMTS, 3G, 3.5G, GSM/GPRS, WLAN and Bluetooth. Two SIM card slots enable redundant mobile connectivity with only one single modem card.
3x RS232/422/485, 4x digital In/Out and 4xUSB3.0 allow maximum connectivity. 3x dP connectors (+ 4x HDMI with systems having GTX graphics adapter) allow the connection of a variety of displays. The integrated graphics unit supports DirectX 12, Vulkan, OpenGL 4.5, OpenCL and CUDA.
Extensive setup and programming options and Watchdog-ability, optional backup battery kit, wide input range (9-48V), extended temperature range (-40° to 70° C) and vibration-/schock-/eMark-certification complete the offer and make the FleetPC-9B series the ultimate platform for any mobile application need.
This MiniPC was especially designed for fleet applications.
The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.
For a full PC you need in addition :
- 1-2x 2.5" HDD/SSD oder mSATA SSD
- DDRIV SO-DDR-RAM
The PC is completely fanless and is equipped with an Intel Core i7-8700T 6x4.0Ghz CPU.
Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- LTE / HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei ME909s-120)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]
Features :
- Fanless
- Intel Core i7-8700T 6x4.0Ghz CPU
- Dual Hot Swappable SATA Storage + mSATA/M.2
- Dual Sim card slot
- 4x USB3.0
- 3x RS232
- 10x Gigabit LAN (optional 8x with POE, max. 100W)
- 3x dP
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 8x DI / 4x DO
- Vibration/shock tested
