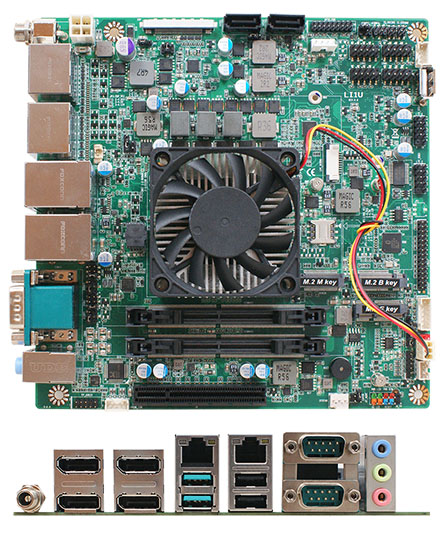

Model
|
– JLI1U-20
|
Form Factor
|
– MINI ITX ( 170 * 170mm)
|
Processor System
|
– AMD™ (RYZEN™) Core V1000 Series Processor
– V1605B QC, 2.0GHz,15W, Co-lay V1000/R1000 series
– AMI 128M Flash ROM
|
Memory
|
– 2* DDR4 2400MHz SO-DIMM up to 32GB
|
Storage
|
– 2* SATAIII (6 Gb/s, SATA1 Support SATA DOM)
– 1* M.2 M-key (2242/2280, PCI-Ex2)
|
Expansion Slot
|
– 1* M.2 E-key (2230, support WIFI/BT Module)
– 1* M.2 B-key (3042/3052, support 4G/5G Module)
– 1* PCIe x8 slot
– 1* SIM Card Slot (NANO)
|
Ethernet
|
– 2* Realtek® RTL8111H GbE
|
Graphics
|
– AMD™ Vega Core Architecture controller, shared memory
– 4* DP1.4 (Max Resolution : 4096×2160@60Hz or 3840×2160@120Hz)
– 1* eDP1.4 (Max Resolution : 3840×2160@60Hz, Co-lay DP0)
– 1* LVDS (Max Resolution : 2560×1600@60Hz, Co-lay DP1)
– Support Four Displays
|
Audio
|
– Realtek® HD Audio
– 3W Speaker Amplifier
|
Watchdog Timer
|
– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
|
Internal I/O
|
– 6* USB2.0 (4* PH2.54, 1* PH2.0, 1* Type A)
– 4* RS232
– 2* SATAIII
– 3* M.2 (1* M key,1* E key, 1* B key)
– 1* GPIO (16 bit, 5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* PS2
– 1* Case Open
– 1* Speaker
|
External I/O
|
– 4* DP
– 2* RJ45
– 2* USB 3.2 (Gen1)
– 2* USB2.0
– 2* RS232/422/485
– 1* Audio jack
– 12~28V DC-in
|
Power
|
12~28V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
Compliance
|
– CE, FCC, RoHS, REACH
|
Temperature
|
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
Warranty
|
– 2 Years Limited Warranty
|
