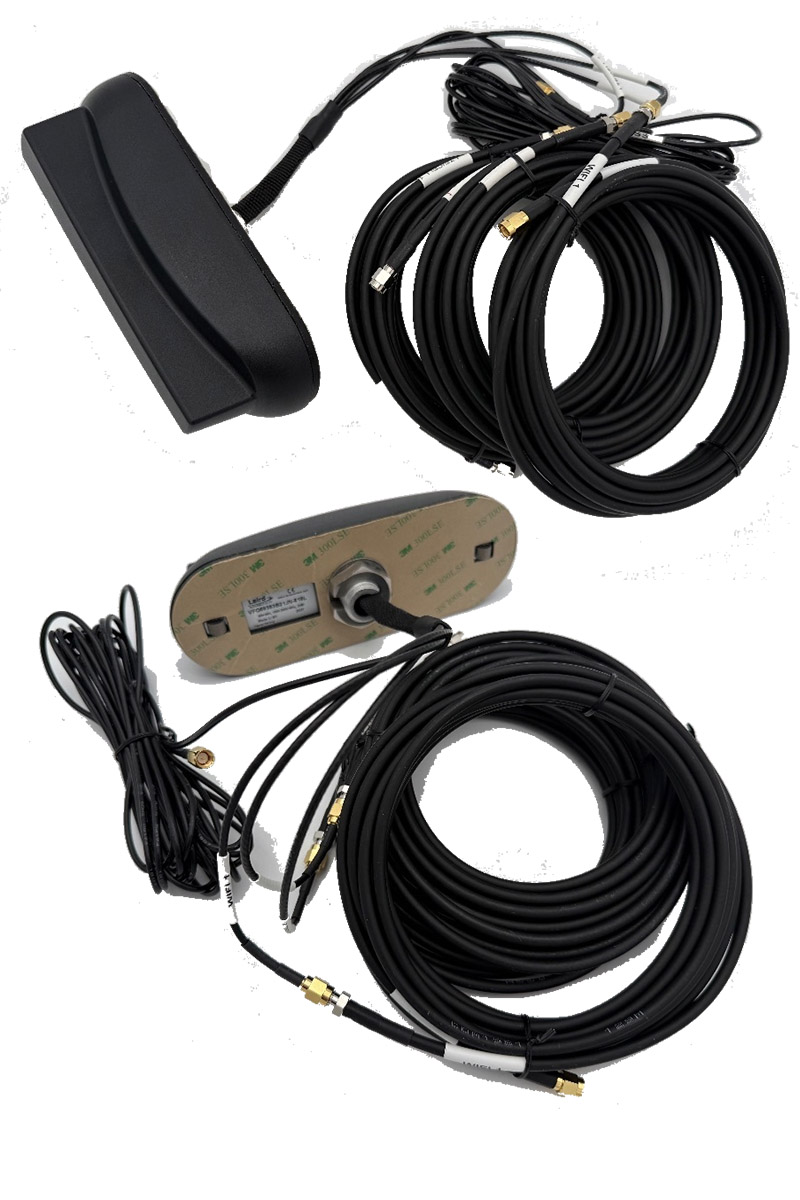

TE Connectivity VFQ69383B21JN-518L (vehicle roof antenna, 2x 3G/4G/ISM/CBRS, 2x WIFI/BT)

PRODUCT IS CURRENTLY NOT AVAILABLE !
TE Connectivity VFQ69383B21JN-518L (vehicle roof antenna, 2x 3G/4G/ISM/CBRS, 2x WIFI/BT)
  • GPS/GLONASS/GSM/UMTS/3G !
  • WLAN / Bluetooth !
  • Active antenna !
  • SMA connectors !

Combined roof antenna for fleet management, navigation, and telematics in conjunction with Wi-Fi. CBRS, ISM, GPS, Glonass, 3G, 4G, Wi-Fi, and Bluetooth.

3x SMA male, 1x SMA female








Share

Material Substance COmpliance
Antennen Model VFP69383B22JN-518J
Port Configuration 2x 3G/4G/ISM/CBRS, 2x WIFI
Watchdog Watchdog Timer Support, Offer 1 – 255 Step
Operating Frequency (Mhz) 698-806 / 824-894 / 880-960 / 1690-3800 / 2400-2500 / 4900-6000
Azimuth Plane 3db Beamwidth 360° Omnidirectional
Nominal IMpedance (ohms) 50
Polarization Linear Vertical
Max Power - Ambient 25°C 10 Watts
  Mechanical Secifications
Dimensions 179x63x48 mm / 0,63 kg
CableType LMR 100, Black
Mounting P-Mount
Baseplate. Aluminium
  Enviremental Specifications
Operating Enviroment Outdoor Vehicle / IP67
Temperatures Operating Temperature: -30 to +70°C Storage Temperature: -40 to +85°C
Material Substance Compliance RoHS
Data sheet Download (PDF)
Data sheet Print view
