CTF1210-M - VGA 12.1" TFT - Touchscreen USB - Video - OPEN-FRAME

CTF1210<b>-M</b> - VGA 12.1" TFT - Touchscreen USB - Video - <b>OPEN-FRAME</b>
  • Open-Frame !
  • VESA 75 !
  • Auto Power On !

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

Note : This Open-Frame TFT display is an offer primarily meant for business and project customers. End consumers should only handle with unprotected electronic parts with appropriate experience.

Possible additional options (starting from a MOQ of 20 units): [more]

Share

629.00 EUR
incl. 19% VAT, plus shipping
In Stock (4 pcs)

3 von 5 Sternen
1 ratings
Add to cart

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

Note : This Open-Frame TFT display is an offer primarily meant for business and project customers. End consumers should only handle with unprotected electronic parts with appropriate experience.

Possible additional options (starting from a MOQ of 20 units):
- Speakers
- Auto-Dimmer
- Different cable lengths
- Other display models/sizes
- Touchscreen RS232 instead of USB
- Other connector types
- [...] Ask us !


Additional informations :
With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

AC-Adapter for home usage and a car cigarette lighter adapter is included.

The CTF-1210-M can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Spezifications
Screen size 12.1" digital
Aspect Ratio 4:3 wide TFT screen
Dot Resolution 2400x600= 1,440,000 dots
Physical Resolution 800x600
Supported Resolutions 640x480-1024x768
Color configuration RGB stripe
Brightness 400 nits
Contrast 500:1
Operating temperature -30°C to 85°C
Power input DC 12V
Power consumption max. 13W
Video system 2x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display : 246.0 x 184.5 mm
Video input signal 1.0Vp-p, composite video
Features Full function OSD control (englisch)
Auto Power On/Off
VESA 75

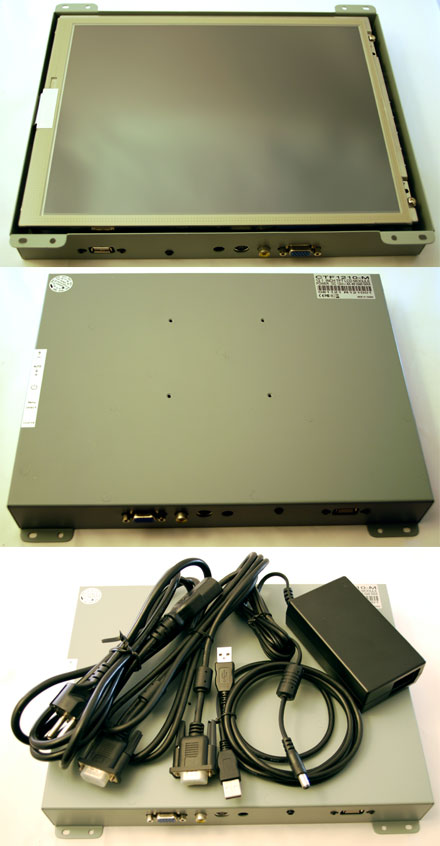

What is included ? - 12.1" VGA Open-Frame Touchscreen TFT with Video-support
- Power Adapter f. EU 230V
- VGA- and USB-connector cable
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Drawing (PDF) Download (PDF)
